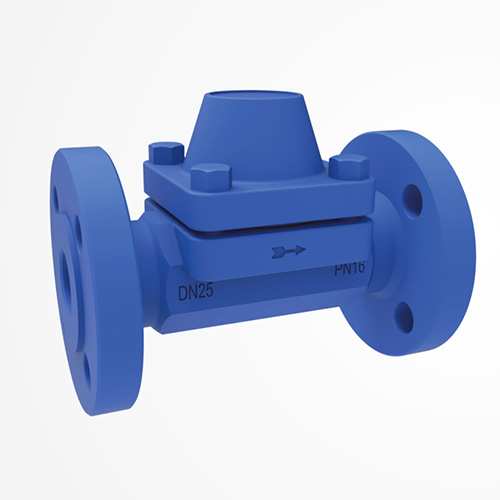

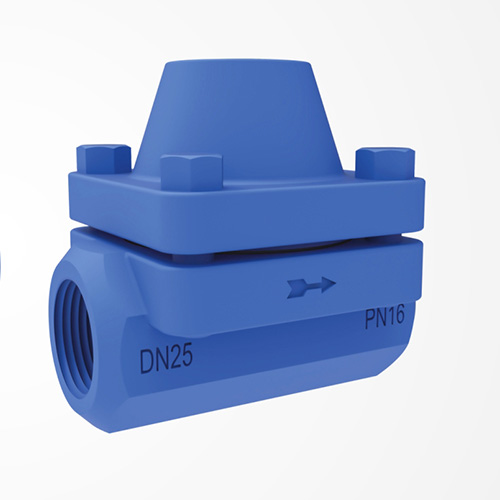

BPM Series Pressure Balanced Steam Traps

Features

The overall hot forging process has high material density and is particularly suitable for harsh working conditions such as high temperature, high pressure, toxicity, and strong permeability.

The bellows gate valve adopts an embedded threaded double-stem structure. The upper stem does not rise or fall when the gate is opened or closed, and the bellows does not rotate, which reduces the opening space and protects the bellows.

The upper valve stem is equipped with a clamping ring and a bearing structure, which is compact and has low torque.

The inner and outer guide structure is adopted, so that the bellows and the lower valve stem have good stability.

Using bellows with larger diameter and pitch can increase the allowable displacement of a single wave, which can effectively extend the service life of the bellows under the same stroke.

The outer guide sleeve designed for the bellows gate valve protects the bellows from direct erosion by the medium, thus greatly improving the service life of the bellows.

Features

VSM series modular condensate recovery station combines tube bundle, steam trap, valve condensate collector into a compact and standardized set of equipment after design and verification.

It is recommended to install the condensate outlet at the top and the cut-off valve at the bottom for sewage discharge: it is mainly used for the centralized collection and transportation of condensate from industrial steam heating systems such as petroleum refining, chemical industry, textile raw material chemical industry, coal chemical industry, and pharmaceutical industry.

Save time on site assembly.

Save engineering costs and reduce procurement and design time.

Flexible and convenient design and installation.

Long service life.

Easy to replace and maintain, you can choose inverted bucket type, bimetallic type, diaphragm box type steam trap.

Can be flexibly adjusted according to design working conditions.

Maximum pressure difference 32bar, maximum displacement up to 3800Kg/h.

Features

The float drives the lever to automatically adjust the opening of the drain valve seat hole, which works continuously and can achieve continuous drainage of small volume and large capacity.

An anti-erosion baffle is installed in the valve body to prevent the steam flow from impacting the float.

Built-in automatic air exhaust device, quick start, no air blockage, good performance in exhausting non-condensable gases.

Maximum pressure difference 32bar, maximum displacement up to 3800Kg/h.

Features

The float drives the lever to automatically adjust the opening of the drain valve seat, which works continuously and can achieve continuous drainage of small volume and large capacity.

An anti-erosion baffle is installed in the valve body to prevent the steam flow from impacting the float.

Built-in automatic air exhaust device, quick start, no air blockage, good performance in exhausting non-condensable gases.

Any installation, maximum pressure difference 21bar, maximum displacement: (cold water 1100Kg/h), (hot water 630Kg/h).

Features

All stainless steel valve body and internal parts, excellent corrosion resistance, light weight, compact design, easy to install.

A stainless steel filter is installed in the valve chamber, which makes maintenance simple.

Can be installed in any direction.
