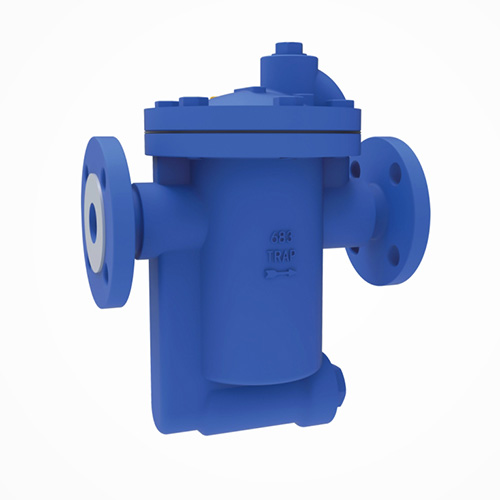

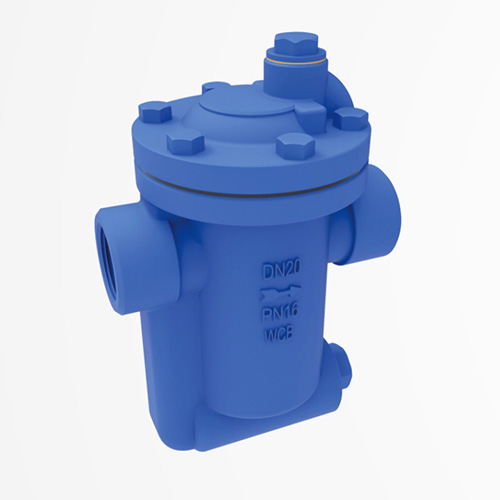

680 Series Inverted Bucket Steam Trap

Product Description

Selection	Restrictions (spherical ink)	Restrictions (carbon steel/stainless steel)	Installation instructions

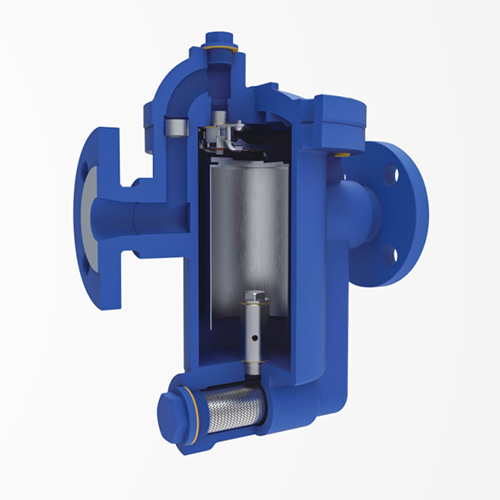

•Built-in stainless steel check valve (CV) •Enlarged vent hole (LV) •Borne pass needle (BVSW)	• Design pressure (PMA): 25bar • Maximum operating pressure (PMO): 21.8bar • Maximum operating temperature (TMO): 232°C	• Design pressure (PMA): 40bar • Maximum operating pressure (PMO): 21.8bar • Maximum operating temperature (TMO): 300°C	Keep the valve body vertical during installation to ensure the vertical up and down movement of the bucket. The inlet and outlet of the valve are level, and the steam trap is installed below the drainage point to maintain the water seal inside the valve.

Dimensions/Weight (approximate) mm and Kg

Model		680		681(PF)			681F			682(PF)			682F			683(PF)			683F
Nominal diameter		15	20	15	20	25	15	20	25	15	20	25	20	25	32	20	25	32	20	25	32	40
A(mm)		127		127			/			165			/			200			/
A1(mm)		/		190			150		160	230			230			270			270
B(mm)		87		113						146						187
C(mm)		154		195						257						340
D(mm)		95								146						187
Weight(Kg)	Thread	2.7		3.5			/			7			/			14			/
	Flange	/		4.7	5	6	4.7	5	6	10	11	11	11	11	12	19	20	20	18	18	20	20

Technical Parameters

Model		680	681	682	683
Connection type		Thread	Thread, integral flange, prepared flange
Installation		level
Maximum working pressure difference (PMX)	(A)	1.4bar	1bar	1bar	1bar
	(B)	5.5 bar	2bar	2bar	2bar
	(C)	8.8bar	4.8bar	5 bar	4bar
	(D)	10.5 bar	8.6 bar	8.6 bar	5.5 bar
	(AND)	/	14bar	14bar	8.6 bar
	(F)	/	17bar	18.9 bar	12.4bar
	(G)	/	21.8bar	/	19bar
	(H)	/	/	/	21.8bar
